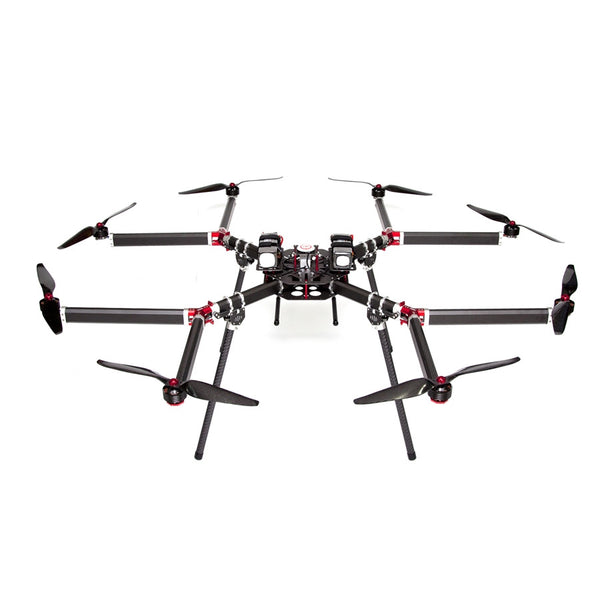

1100mm Standard -Type OCTO Airframe Kit

Specification

-Diameter : 1100mm (motor to motor)

-Weight : 1660g

-Center Frame Size : 240mm X 240mm

Recommended Equipment :

-ESC : 40~ 45 A Opto ESCs.

-Propeller : up to 15 inch, 15 inch recommended

-Flight Controller : DJI A2 or MikroKopter FlightCTRL 2.5

-Cameras : RED Epic, Canon 5D / C100

-Battery : 6s LiPO with 10000+mAh

Suitable Camera Gimbals :

- Freefly Systems: MoVi MR, 2 and 3 axis Cinestar gimbal

- Photo Higher: Pro Mount 200, Halo 2000, Halo 3000

- DJI Zenmuse Z15

This product is a pure kit.

Landing Gear and Electronic equipment is not included.

Items Included:

• 4 X Inner Arms
• 8 X Outer Arms
• 1 X TOP Center Plate
• 1 X Bottom Center Plate
• 2 X Battery Tray
• 1 X GPS Plate
• 4 X Boom Clamp Set
• 16 X Cross Member
• 10 X Hub Connector
• 8 X Motor Mount Assembly
• 1 X Rail Mount Assembly for Gimbal
• 4 X Velcro Battarry Strap
• Screws & Nuts
